ROBUST FULHAM ‘CUSTOM SHOP’ CAPABILITIES:
Rapid LED Module Development & Quick Turn Samples

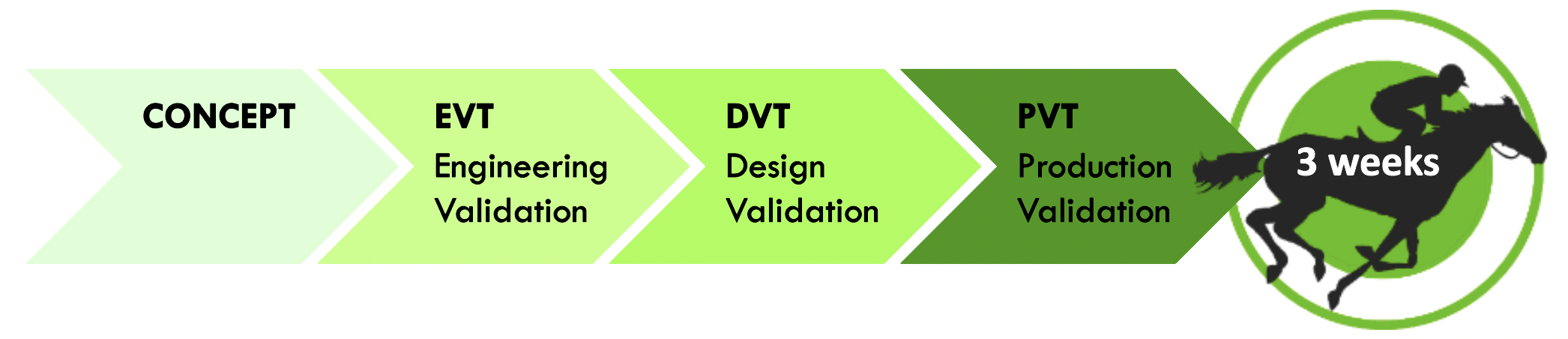

Reduce your time to market with Fulham! Utilizing Fulham’s in-house Research and Development teams in the USA, India, and Asia, we are able to react swiftly to your LED modules requests and can deliver samples in hand in as little as 3 weeks from engagement kickoff, depending on complexity and nature of customizations. With nearly 30 years of industry experience, we have provided a vast assortment of custom LED solutions to our customers – There’s nothing we haven’t seen before!
Product Types by Input: Constant Current DC Modules, Constant Voltage DC Modules, AC Modules (DOB, Driver on Board)
PCB Material: MCPCB, FR4, CEM3, CEM1, FPC
PCB thickness: 0.8 / 1.0 / 1.6 / 2.0mm
PCB Copper thickness: 1oz / 2oz / 3oz
PCB thermal conductivity: MCPCB 1.0 / 1.5 / 2.0 / 3.0W/mK, Non-MCPCB: 0.2~0.8W/mK
PCB Max. Dimension: Linear Type 59″x8.6″ [1500x220mm], Square/Round Type 15.7″x 15.7″ [400x400mm]
CRI: Ra70, 80, 90, 95, 97
Standard CCT: 2700 / 3000 / 3500 / 4000 / 5000 / 5700 / 6500K; Special CCT: 1800 / 2000 / 2200 / 2500 / 7000K
Full Color: 450nm Blue, 520nm Green, 600nm Orange, 630nm Red, 660nm Deep Red, 730nm Far Red
Specialty UV: 270nm UVC, 365nm UVA, 395nm UVA
IP Rating: IP20 Standard; IP65 Conformal Coating; IP67 Silicone Tube (For Flex. Tape) ; IP68 Silicone Extrusion (For Flex. Tape)
Double-Side-Tape on back: available, typ. 3M tapes
Optical Lens: Clear / Diffused lens Cover. Standard Beam Angle 120° , Special: 30°, 60°, 140°, 160°
Connection: Soldering Pads, Lead Wires, SMT Connectors
Contact your Fulham Representative for more information: Click Here
