WorkHorse LED Connected Driver

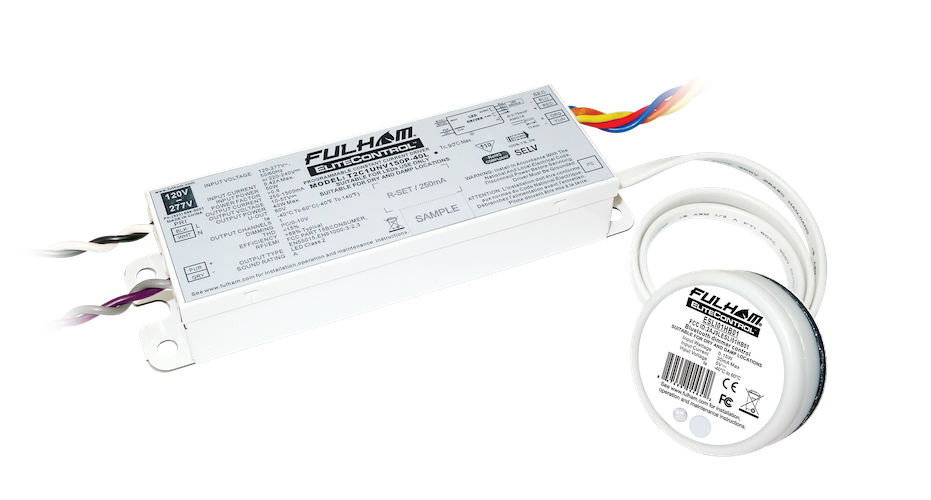

The revolutionary WorkHorse LED Connected Driver is a programmable 40W, 0-10V constant current driver with the unique ability to add Bluetooth® mesh connectivity by attaching a plug-and-play Bluetooth antenna. Fulham’s eliteBlue commissioning software provides an intuitive set of tools for commissioning and monitoring qualified Bluetooth mesh lighting devices. Using simple web and iOS apps, users can easily customize lighting control parameters in accordance with site-specific needs and building energy codes. Compatible with third-party sensors, wall switches, and other devices, the Connected Driver serves as the core component for powerful, easy-to-expand connected systems.
Specifications
Specifications
- Driver Type: Constant Current
- Input Voltage: 100-277VAC (UNV)
- Input Frequency: 50/60Hz
- Programmable output current: 250-1500mA in 1MA increments
- Power Factor: >0.9
- THD: <15%
- Dimming Type: 0-10V, 100%-1%, or 0%. Bluetooth dimming with optional ESLI01HB01 Smartlink
- Ambient Temperature Range: -40°C to 60°C (-40°F to 140°F)
- RFI/EMI: FCC Part 15B Consumer, EN55015,EN61000-3-2, 3
- Sound Rating: A
- Output Type: Isolated, LED Class 2
- Input Surge Protection: Line-Neutral 2.5KV, Line & Neutral-Ground 2.5KV
- Approvals: cULus Listed, CE, SELV, RoHS
- Warranty: 5 years (See specification sheet for details)
Bluetooth Commissioning Software and Manual
- Access the eliteBlue web portal
- Download the eliteBlue mobile app (Requires iOS -iPhone or iPad)
- Download the eliteBlue Commissioning Manual
- Application Note: EnOcean Switches in Bluetooth Applications
- Application Note: Network Settings- Best practices for Relay nodes, EnOcean adapter and Mobile device proxy
eliteBlue Software Tutorials
Programming Software and User Manual
- Download SmartSet software (5MB)
System requirements: 1GHz CPU, 512MB RAM, USB Port 2.0/3.0. Supported Windows OS versions: Windows XP SP2 and above (32 & 64 bit), Windows Vista/Windows 7 (32 & 64 bit), Windows 8 (32 & 64 bit)
- SmartSet software installation instructions
- Download TPSB-100 SmartSet Controller User Manual (less than 1MB)
- Download Programming Instructions and Design Guide (less than 1MB)
Demonstration Videos
Product Models
*cULus listed
