LED Drivers Coming Soon

Below please find links to preliminary spec sheets that relate to Pre-Launched LED Drivers which are intended to be available soon. Please reach out to your Fulham representative for more details, anticipated demand and sample requests.

Programming Guide

Fulham Smartset Programming

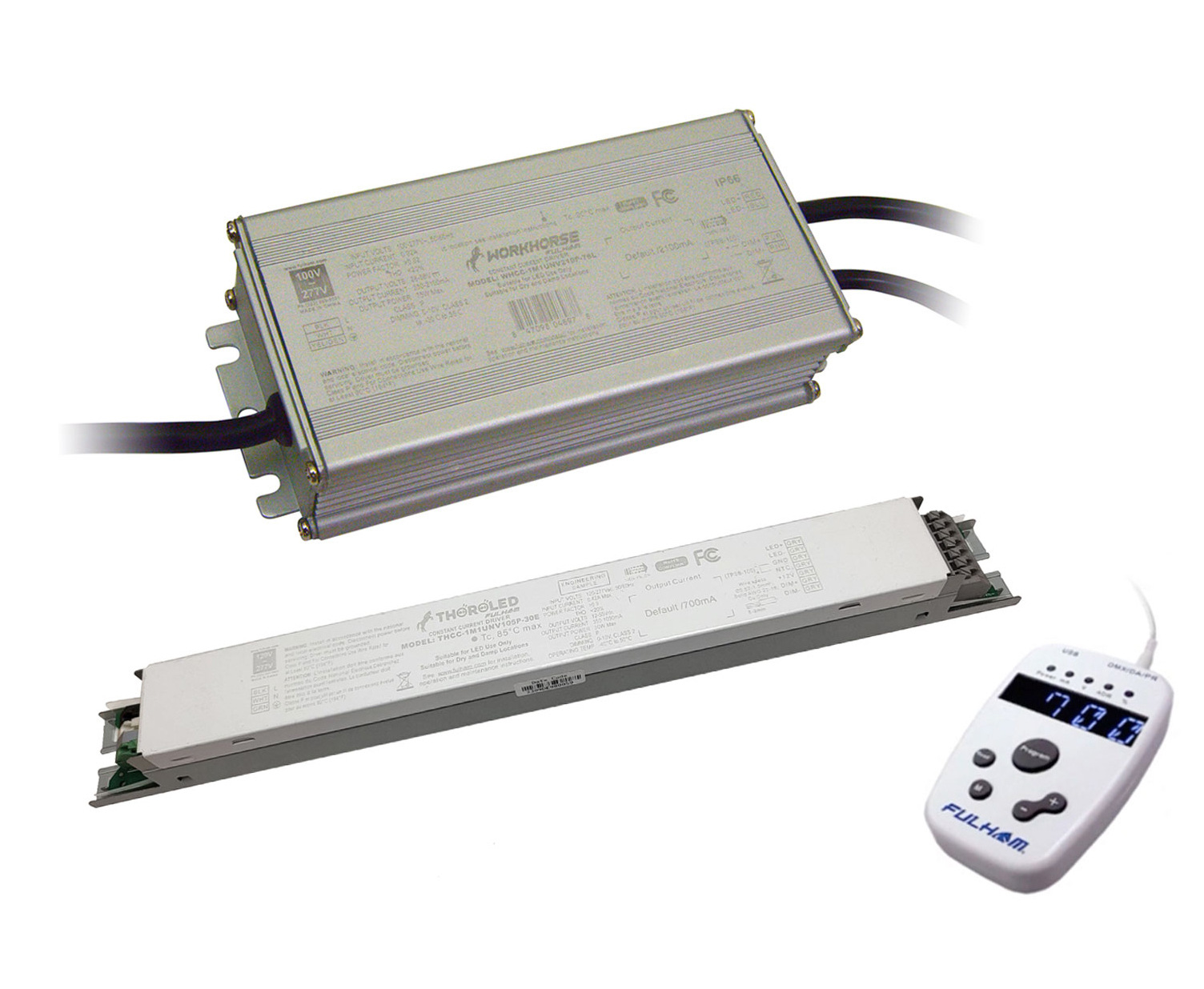

The TPSB-100 SmartSet controller gives the user the power to set a number of parameters of compatible WorkHorse LED and HotSpot LED Drivers. Current, voltage, DMX address, dimming curve, LED group, terminal resistor, and lowest dimming percentage can all be customized to the user’s needs.

Fulham’s TPSB-100 is powered via a USB cable that can connect either to a PC or wall power with the included adapter. The programming cable then makes a simple contact with connectors on the LED driver to transmit the desired settings. When used with a PC, Fulham’s SmartSet software provides additional programming ability.

For additional information, please see the links below:

White paper overview of the SmartSet programming system (less than 1MB)

Download TPSB-100 SmartSet Controller User Manual (less than 1MB)

Download Programming Instructions and Design Guide (less than 1MB)

Download SmartSet software (5MB)System requirements:1GHz CPU, 512MB RAM, USB Port 2.0/3.0.Supported Windows OS versions:Windows XP SP2 and above (32 & 64 bit), Windows Vista/Windows 7 (32 & 64 bit), Windows 8 (32 & 64 bit)

SmartSet software installation instructions

Videos

https://www.youtube.com/watch?v=xvLRRy6id5c

Having trouble viewing these videos? Please visit the Fulham YouTube channel at https://www.youtube.com/user/Fulhamltgco/videos

Additional Resources

PONY Selectable Current (PYCC) Presentation

Condition of Acceptability for Programmable Drivers

TPSB-100 SmartSet Controller Spec Sheet

TPSB-100 SmartSet Controller User Manual

Programming Instructions and Design Guide

White paper overview of the SmartSet programming system

SmartSet software installation instructions

SugarCube Tri-Dim Compact Programmable Drivers (SCCC)

0-10V/TRIAC dimming
Compact Case form Factor

Model Number	Input Voltage, Frequency	Output Wattage (W)	Output Current Range (mA)	Default Output Current (mA)	Output Voltage Range	Dimming Type	Dimming Range	Dim-to-Off	AUX Output (VDC/mA)	NTC	IP Rating	Dimensions (")
SCCC-2U1UNV180P-65C	120-277V, 50/60Hz	65	500-1800	1,800	10-54VDC	0-10V/Phase@120VAC	100%-3%, 0%	Yes	No	No	IP20	4.98 x 2.37 x 1.05

WorkHorse Specialty Grade (WHSG)

Non-Class 2 Programmable Outdoor LED Drivers (TPSB-100 SmartSet Handheld)
Multiple options per wattage – different output current and voltage
IP66, Type HL, dry and damp locations
Input Surge Protection: Line-Neutral 6KV, Line & Neutral-Ground 10KV
0-10V Dimmable, 100%-10%
4 different form Factors
IP67 option available – Leadtime and MOQ applies

Model Number	Input Voltage, Frequency	Output Wattage (W)	Output Current Range (mA)	Default Output Current (mA)	Output Voltage Range	Dimming Type	Dimming Range	Dim-to-Off	AUX Output (VDC/mA)	NTC	IP Rating	Dimensions (")
WHSG-1M1UNV105P-75L	100-277V, 50/60Hz	75	350-1050	1,050	53-107VDC	0-10V	100%-10%	No	No	No	IP66	5.71 x 2.6 x 1.44
WHSG-1M1UNV069P-100L	100-277V, 50/60Hz	96	500-690	690	96-102VDC	0-10V	100%-10%	No	No	No	IP66	5.71 x 2.6 x 1.44
WHSG-1M1UNV140P-100L	100-277V, 50/60Hz	96	350-1400	1,400	53-107VDC	0-10V	100%-10%	No	No	No	IP66	5.71 x 2.6 x 1.44
WHSG-1M1UNV100P-150L	100-277V, 50/60Hz	150	350-1000	1,000	107-214VDC	0-10V	100%-10%	No	No	No	IP66	6.5 x 2.6 x 1.44
WHSG-1M1UNV210P-150L	100-277V, 50/60Hz	150	500-2100	2,100	56-107VDC	0-10V	100%-10%	No	No	No	IP66	6.5 x 2.6 x 1.44
WHSG-1M1UNV420P-150L	100-277V, 50/60Hz	150	700-4200	4,200	28-56VDC	0-10V	100%-10%	No	No	No	IP66	6.5 x 2.6 x 1.44
WHSG-1M1UNV110P-200L	100-277V, 50/60Hz	200	350-1100	1,100	143-286VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV210P-200L	100-277V, 50/60Hz	200	500-2100	2,100	75-150VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV560P-200L	100-277V, 50/60Hz	200	700-5600	5,600	28-56VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV110P-240L	100-277V, 50/60Hz	240	350-1100	1,100	171-342VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV210P-240L	100-277V, 50/60Hz	240	500-2100	2,100	90-180VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV670P-240L	100-277V, 50/60Hz	240	700-6700	6,700	28-56VDC	0-10V	100%-10%	No	No	No	IP66	7.68 x 2.6 x 1.44
WHSG-1M1UNV110P-320L	100-277V, 50/60Hz	320	350-1100	1,100	229-457VDC	0-10V	100%-10%	No	No	No	IP66	9.57 x 2.99 x 1.63
WHSG-1M1UNV210P-320L	100-277V, 50/60Hz	320	500-2100	2,100	120-240VDC	0-10V	100%-10%	No	No	No	IP66	9.57 x 2.99 x 1.63
WHSG-1M1UNV760P-320L	100-277V, 50/60Hz	320	1500-7600	7,600	30-60VDC	0-10V	100%-10%	No	No	No	IP66	9.57 x 2.99 x 1.63

IceHorse (IHCV) IP65 Constant Voltage LED Drivers

Model Number	Max Output Power (W)	Output Current Range (mA)	Output Voltage Range (VDC)	Aux Output (VDC/mA)	Programmer Type	IP Rating	Certifications	Dimming Type	Dimming Range	Dim-to-Off	NTC	US, CN, Class 2
IHCV-1UNV024V-100L	96	4,100	24	N/A	N/A	64	cULus Listed, Class P, CE	N/A	N/A	N/A	No	Yes

HighHorse Series for High Bay applications (HHCC)

120-277VAC Input, Power and CCT Selectable UFO High-Bay Driver
5.04” D x 2.42” H, Mounting 4.45″
Non-Isolated Driver, Non-Class 2 Output
Factory Set Output Current: 850mA-1200mA (900mA Default)
cULus Listed, Class P, IP65, Type HL
Dimmable: 0-10V, 100%-10%, 0%
Power Selectable: 3-Level (100%, 80%, 60%)
CCT Selectable: 3-Level (CW, MW, WW)
Aux Output: 12V/0.2A
EMI: FCC Part 15B
Input Surge protection: L-N 6kV, L&N-G 6kV
Warranty: 5 years
